- Product name: AUTOMOBILE TIES 9969
- Data name: AUTOMOBILE TIES 9969_AUTOMOBILE TIES AND CONNECTOR CLIPS

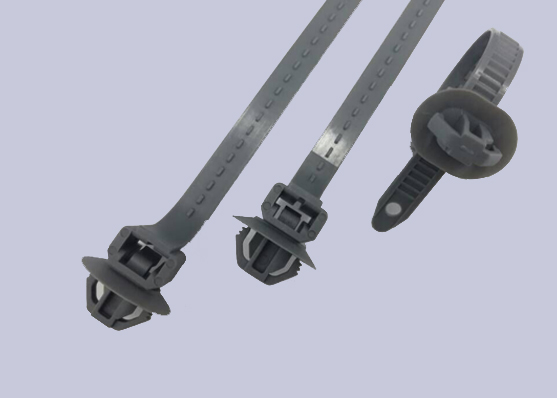

One-piece fir-tree design with disc is similar to push mount cable ties but the disc can enhance the stability of fixing and avoid dust and water invasion
Additional cured tab below the buckle will fasten and maintain bundles on the axial.Fir-tree push mount design applied to varied to varied thickness of board or one-side thread hole
Applied to different industries such as automotive,aviation,white goods manufacture,and panel building
Specifications supplied by customers’ order
Material:Nylong 66,UL94 V2
Color: Black,White
Product details
Part No. | Length mm | Width mm | Hole Dla mm | Mounting Hole mm | Max.Bundle Dia | Min.loop Tensile kg(lbs) | Download |
| 9969 | 125 | 8.0 | 7.0*12 | 1.0~3.0 | 30 | 54.4(120) | Drawing |
